Absolute distance#
Calculating the absolute distance traveled by a set of particle trajectories in km.
Author(s): Laura Gomez Navarro
Created on: 21/06/23
Last updated on:
[1]:
import time
print(time.ctime(time.time()))
Sun Sep 21 18:58:28 2025
0. Imports and package versions#
[2]:
%matplotlib inline
from datetime import timedelta, datetime
from glob import glob
import xarray as xr
import numpy as np
import matplotlib.pyplot as plt
import matplotlib
import matplotlib.dates as mdates
import xarray as xr
from matplotlib import colors
import matplotlib.gridspec as gridspec
import cartopy
import cartopy.crs as ccrs
from cartopy.mpl.ticker import LongitudeFormatter, LatitudeFormatter
from collections import namedtuple
from shapely import geometry
import scipy
from scipy import stats, optimize, interpolate
1. Loading the data#
[3]:
filedir = '../../Simulations/'
[4]:
ds = xr.open_dataset(filedir + 'toy_data_01.nc')
[5]:
ds
[5]:
<xarray.Dataset> Size: 627kB
Dimensions: (traj: 144, obs: 121)
Dimensions without coordinates: traj, obs
Data variables:
trajectory (traj, obs) float64 139kB ...
time (traj, obs) datetime64[ns] 139kB ...
lat (traj, obs) float32 70kB ...
lon (traj, obs) float32 70kB ...
z (traj, obs) float32 70kB ...
U (traj, obs) float32 70kB ...
V (traj, obs) float32 70kB ...
Attributes:
feature_type: trajectory
Conventions: CF-1.6/CF-1.7
ncei_template_version: NCEI_NetCDF_Trajectory_Template_v2.0
parcels_version: 2.3.1.dev20+g92f2fb90
parcels_mesh: spherical2. Calculating the distance#
2.1. Defining the function to calculatethe distance between 2 points in km#
[6]:
from math import sin, cos, sqrt, atan2, radians, pi
def dist_km(lona, lonb, lata, latb):
"""
Function to calculate the distance between 2 points in km
Haversine formula used, which assumes the Earth is a sphere.
source: https://stackoverflow.com/questions/19412462/getting-distance-between-two-points-based-on-latitude-longitude
"""
R = 6373.0 # approximate radius of earth in km
lat1 = radians(lata)
lon1 = radians(lona)
lat2 = radians(latb)
lon2 = radians(lonb)
dlon = lon2 - lon1
dlat = lat2 - lat1
a = sin(dlat / 2)**2 + cos(lat1) * cos(lat2) * sin(dlon / 2)**2
c = 2 * atan2(sqrt(a), sqrt(1 - a))
distance = R * c
return distance
2.2. Creating the output data array#
[7]:
abs_dist_01 = ds.lon[:,0].copy() * np.nan
abs_dist_01.shape
[7]:
(144,)
2.3. Calculating the distances traveled during every timestep for all trajectories#
[8]:
%%timeit
for tt in range(0, len(ds.traj)):
lon_t = ds.lon[tt,:].dropna(dim='obs')
lat_t = ds.lat[tt,:].dropna(dim='obs')
abs_dist_01[tt] = dist_km(lon_t[0], lon_t[-1], lat_t[0], lat_t[-1])
# abs_dist_01.to_netcdf("abs_dist_01.nc")
56.9 ms ± 824 μs per loop (mean ± std. dev. of 7 runs, 10 loops each)
2.4. Checking if any values are 0, and dropping them#
[9]:
abs_dist_01
[9]:
<xarray.DataArray 'lon' (traj: 144)> Size: 576B
array([ 411.04208 , 453.4008 , 381.6008 , 282.05228 , 1242.5476 ,
480.27228 , 1201.6752 , 1146.2869 , 908.0078 , 919.3956 ,
913.43463 , 220.22203 , 1008.9668 , 978.1187 , 1111.2708 ,
315.65762 , 1207.3734 , 316.34738 , 1736.6965 , 603.5743 ,
398.85455 , 846.42883 , 581.2281 , 350.16443 , 127.907936,
526.6734 , 96.51506 , 1060.3525 , 994.03064 , 24.599104,
1238.1918 , 571.10583 , 767.89575 , 627.98193 , 630.5732 ,
433.24515 , 133.65677 , 785.67346 , 184.2212 , 989.54193 ,
81.88642 , 86.57502 , 723.77246 , 1736.7637 , 1675.4313 ,
1663.6777 , 781.6274 , 753.3882 , 535.4887 , 702.92236 ,
74.10612 , 154.92816 , 269.08594 , 72.24956 , 384.83676 ,
389.89783 , 798.38525 , 1722.8524 , 1616.8757 , 669.89636 ,
148.27472 , 879.46655 , 417.41785 , 188.67714 , 116.22897 ,
294.26434 , 118.76671 , 384.75223 , 384.20926 , 239.12842 ,
787.46765 , 836.72345 , 205.82903 , 708.99817 , 730.8631 ,
807.8967 , 231.73116 , 141.5095 , 376.80035 , 184.07048 ,
230.14755 , 494.0636 , 169.42867 , 432.00278 , 700.1224 ,
323.10477 , 425.54794 , 931.1051 , 744.7003 , 114.45423 ,
147.65381 , 386.98175 , 810.6764 , 914.5027 , 996.60394 ,
1227.4968 , 396.53015 , 561.433 , 174.67416 , 681.2424 ,
583.0263 , 447.10388 , 198.39479 , 450.36694 , 453.93738 ,
307.8172 , 510.4772 , 344.71515 , 304.95953 , 347.53668 ,
342.34134 , 311.0616 , 538.0072 , 931.88824 , 472.57233 ,
267.78708 , 357.8639 , 453.324 , 343.47607 , 344.36768 ,
559.48047 , 283.00296 , 920.24445 , 637.0801 , 733.1881 ,
838.68726 , 606.8762 , 601.77466 , 532.3691 , 1221.3522 ,
580.39777 , 834.7051 , 262.2627 , 515.7538 , 510.86624 ,
607.5452 , 674.90967 , 666.03156 , 691.1114 , 634.25055 ,
631.1047 , 816.3439 , 1275.1577 , 1022.57715 ], dtype=float32)
Dimensions without coordinates: traj–> ‘lon’ appears , which also cannot be called??
abs_dist_01.lon , gives error
[10]:
abs_dist_01 = abs_dist_01.where(abs_dist_01!=0, drop=True)
[11]:
abs_dist_01
[11]:
<xarray.DataArray 'lon' (traj: 144)> Size: 576B
array([ 411.04208 , 453.4008 , 381.6008 , 282.05228 , 1242.5476 ,
480.27228 , 1201.6752 , 1146.2869 , 908.0078 , 919.3956 ,
913.43463 , 220.22203 , 1008.9668 , 978.1187 , 1111.2708 ,
315.65762 , 1207.3734 , 316.34738 , 1736.6965 , 603.5743 ,
398.85455 , 846.42883 , 581.2281 , 350.16443 , 127.907936,
526.6734 , 96.51506 , 1060.3525 , 994.03064 , 24.599104,
1238.1918 , 571.10583 , 767.89575 , 627.98193 , 630.5732 ,
433.24515 , 133.65677 , 785.67346 , 184.2212 , 989.54193 ,
81.88642 , 86.57502 , 723.77246 , 1736.7637 , 1675.4313 ,
1663.6777 , 781.6274 , 753.3882 , 535.4887 , 702.92236 ,
74.10612 , 154.92816 , 269.08594 , 72.24956 , 384.83676 ,
389.89783 , 798.38525 , 1722.8524 , 1616.8757 , 669.89636 ,
148.27472 , 879.46655 , 417.41785 , 188.67714 , 116.22897 ,
294.26434 , 118.76671 , 384.75223 , 384.20926 , 239.12842 ,
787.46765 , 836.72345 , 205.82903 , 708.99817 , 730.8631 ,
807.8967 , 231.73116 , 141.5095 , 376.80035 , 184.07048 ,
230.14755 , 494.0636 , 169.42867 , 432.00278 , 700.1224 ,
323.10477 , 425.54794 , 931.1051 , 744.7003 , 114.45423 ,
147.65381 , 386.98175 , 810.6764 , 914.5027 , 996.60394 ,
1227.4968 , 396.53015 , 561.433 , 174.67416 , 681.2424 ,
583.0263 , 447.10388 , 198.39479 , 450.36694 , 453.93738 ,
307.8172 , 510.4772 , 344.71515 , 304.95953 , 347.53668 ,
342.34134 , 311.0616 , 538.0072 , 931.88824 , 472.57233 ,
267.78708 , 357.8639 , 453.324 , 343.47607 , 344.36768 ,
559.48047 , 283.00296 , 920.24445 , 637.0801 , 733.1881 ,
838.68726 , 606.8762 , 601.77466 , 532.3691 , 1221.3522 ,
580.39777 , 834.7051 , 262.2627 , 515.7538 , 510.86624 ,
607.5452 , 674.90967 , 666.03156 , 691.1114 , 634.25055 ,
631.1047 , 816.3439 , 1275.1577 , 1022.57715 ], dtype=float32)
Dimensions without coordinates: traj–> missing part to check first if 0 are there
–> improve line above too??
3. Plotting the outputs#
3.1. Plotting histogram of absolute distances#
[12]:
plt.figure(figsize=(14,10))
plt.hist(abs_dist_01)
plt.grid()
plt.ylabel('Frequency')
plt.xlabel('Absolute distance [km]')
[12]:
Text(0.5, 0, 'Absolute distance [km]')

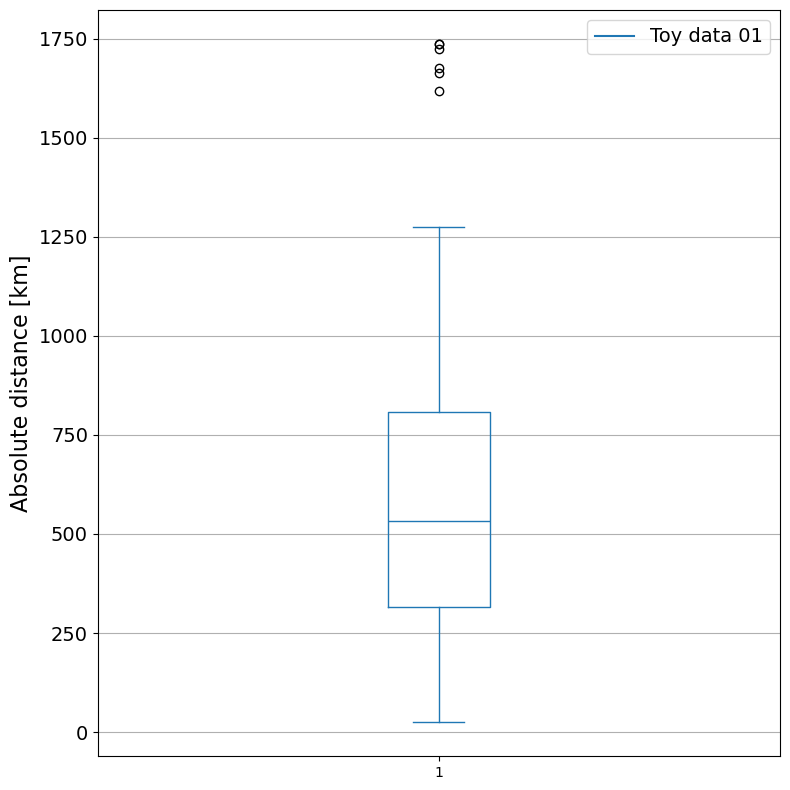

3.2. Boxplot of the absolute distance of all the particles:#
[13]:
def set_box_color(bp, color):
plt.setp(bp['boxes'], color=color)
plt.setp(bp['whiskers'], color=color)
plt.setp(bp['caps'], color=color)
plt.setp(bp['medians'], color=color)
# plt.setp(bp['facecolor'], color=color)
plt.figure(figsize=(8,8))
ax1 = plt.subplot(111)
bpl = ax1.boxplot(abs_dist_01) #, positions=np.array(range(len(dist_cum_a)))*2.0-0.4, sym='', widths=0.6)
set_box_color(bpl, 'C0') # colors are from http://colorbrewer2.org/
# draw temporary red and blue lines and use them to create a legend
plt.plot([], c='C0', label='Toy data 01')
# plt.plot([], c='C3', label='Tidal forcing')
plt.legend(fontsize=14)
# ax.legend(fontsize=14)
# plt.xticks(range(0, len(ticks) * 2, 2), ticks, fontsize=14)
plt.yticks(fontsize=14)
# plt.xlim(-2, len(ticks)*2)
# plt.ylim(0, 850)
# ax1.set_xticklabels(labels, rotation=45, horizontalalignment='right')
# plt.grid()
ax1.yaxis.grid()
ax1.set_ylabel('Absolute distance [km]', size=16)
plt.tight_layout()
# plt.savefig('figs/cumsum_km_and_total_dist_km_BOXPLOT_01.jpg', dpi=300)
plt.show()
[ ]:
